TTE Turbo New TTE480+ TFSI Upgrade Turbocharger Audi | KTM | Seat | Skoda | Volkswagen 2.0 TFSI 2004+ TTE10016 | Vivid Racing
TTE480+ TFSI UPGRADE TURBOCHARGER
TTE480+ VAG 2.0 TFSI EA113 UPGRADE TURBOCHARGER
Welcome to our Ultimate OEM+ Plug & Play Upgrade turbocharger for the 2.0 TFSI range of vehicles. Ultra-Fast response with big turbo power giving the huge area of power under the curve. A true Stage 3 hybrid.
TTE480 begins life as a brand new standard BorgWarner K04-064 turbocharger that we dismantle and then set about upgrading and optimising as engineers to create our ultimate K04 frame hybrid. TTE480 Turbocharger is in our opinion the final step and our pinnacle power stage for the 2.0 TFSI range of vehicles while retaining the OE K04 unit for Plug & Play fitment.
Engineered & Enhanced

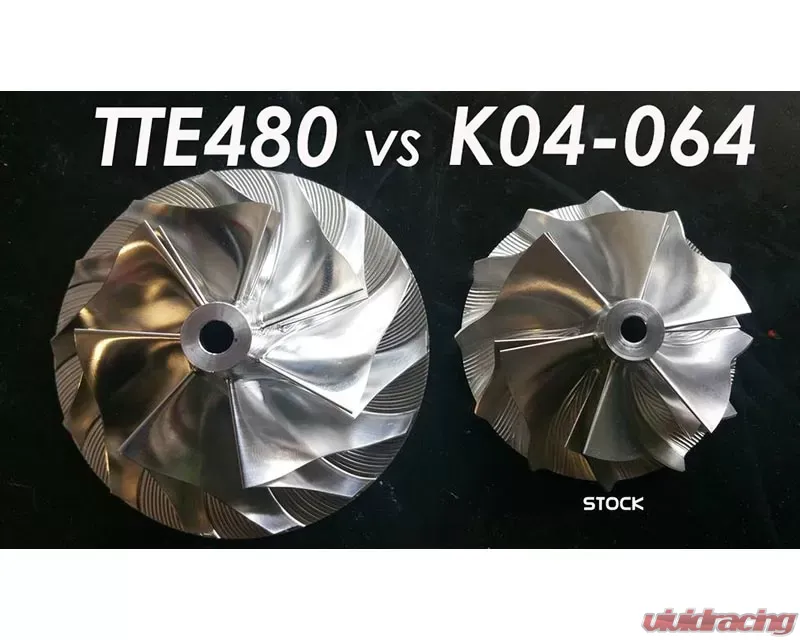

The recipe to making a TTE480 starts with a much larger TTE billet compressor wheel, chosen because is a highly efficient, new generation type with very thin blades, creating an extremely high flow for comparative size, giving a compressor map that's very wide. The Re-Profiled compressor cover is machined to an optimised tolerance to ensure maximum compressor efficiency is given. Also, the inlet the pipe is CNC ported at the entry to give a smooth transition for the incoming airflow from the intake connection.
We fit our TTE CNC K04 silencer delete, we modify the turbo discharge silencer, removing the baffle internals and fitting a new straight-through section, removing any restriction and its function as a noise-canceling device, and so improving the flow, giving less surge and enhancing the sound.
A key part of driving the large billet TTE compressor and in turn making this unit produce the huge power advantage overstock and also our 420 upgrade hybrid, is machining and fitting a far larger TTE 9 blade High-Flow turbine and shaft, while still keeping the k04 core, this is not so easy to do. This turbine gives much lower back pressure and keeps EGT lower compared to stock K04 turbine or TTE420 K16 clipped wheel.
With this TTE stage we have CNC ported the exhaust manifold as standard at the head flange to match and smooth the transition from head to exhaust runner for maximum gas speed and so improving efficiency to the much bigger monster turbine and so driving the compressor harder.
Special TTE developed in-house high-performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.
The actuator used is an uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Features:
WARNING: Cancer and Reproductive Harm
| Make Vehicle | Model | Submodel | Year | Engine | Notes |
|---|---|---|---|---|---|
|
2004-2012 Audi A3 |
A3 | 2004-2012 | |||
|
2006-2013 Audi S3 |
S3 | 2006-2013 | |||
|
2006 Audi TT MK1 |
TT MK1 | 2006 | |||
|
2007-2014 Audi TT MK2 |
TT MK2 | 2007-2014 | |||
|
2008-2019 KTM X-Bow |
X-Bow | 2008-2019 | |||
|
2010-2014 Volkswagen Golf R |
Golf R | 2010-2014 | |||
|
2009-2017 Volkswagen Scirocco |
Scirocco | 2009-2017 |
The Turbo Engineers GmbH (also called TTE Turbo) is a dynamic and highly innovative turbocharger engineering company headquartered in Dachau, just on the outskirts of Munich in Germany. The brand specializes in the production of motorsport upgrade turbochargers to the highest level of quality and greatest efficiency. With strict attention to detail and rigorous testing methods, TTE Turbo offers a comprehensive line of top-notch turbocharger upgrades that deliver proven results. You can count on TTE Turbo to deliver a long-time, reliable, and optimized system for your car to achieve the maximum power and performance possible.
TTE Turbo is focused on the construction of prototypes through the concept stage all through completion with most of the work being done in-house to its own stringent standards. The team places a large focus on converting existing OE turbochargers to newly upgraded specs for enhanced results. During the design and testing process, TTE turbochargers are thoroughly tested and refined to create a final product that emphasizes both performance and long-term reliability.
TTE Turbo is highly regarded in the automotive community as it consults and provides its parts to race teams and well-known tuners all around the globe. The company covers a wide array of automakers, including Alfa Romeo, AMG, Aston Martin, BMW, Ferrari, Ford, Lamborgini, McLaren, Nissan, Porsche, Renault, Toyota, and Volkswagen.
If you are looking for the best-engineered performance turbochargers on the market, TTE Turbo is the way to go. Vivid Racing carries an impressive lineup of parts from The Turbo Engineers, including heat shields and wraps, intake adapters, silencer deletes, performance turbocharger systems, and remanufactured turbos. Should you have any questions about TTE Turbo, please contact us at (480) 966-3040.
