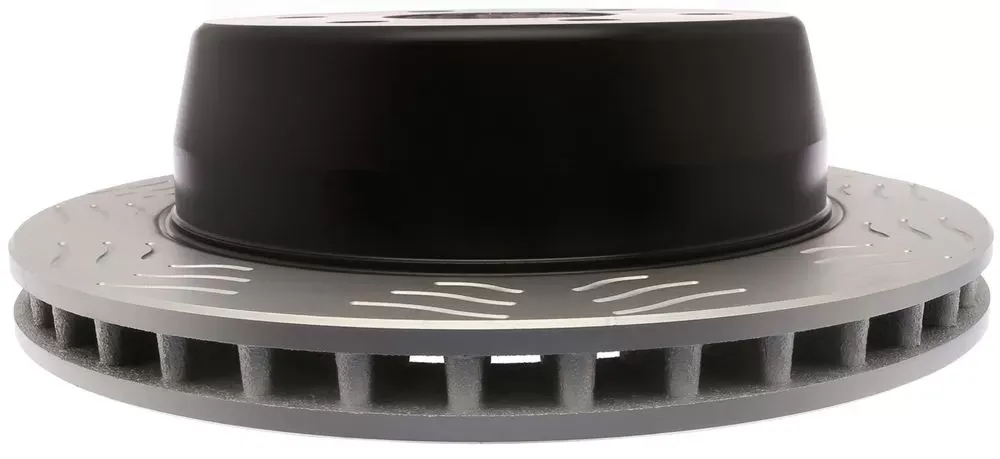

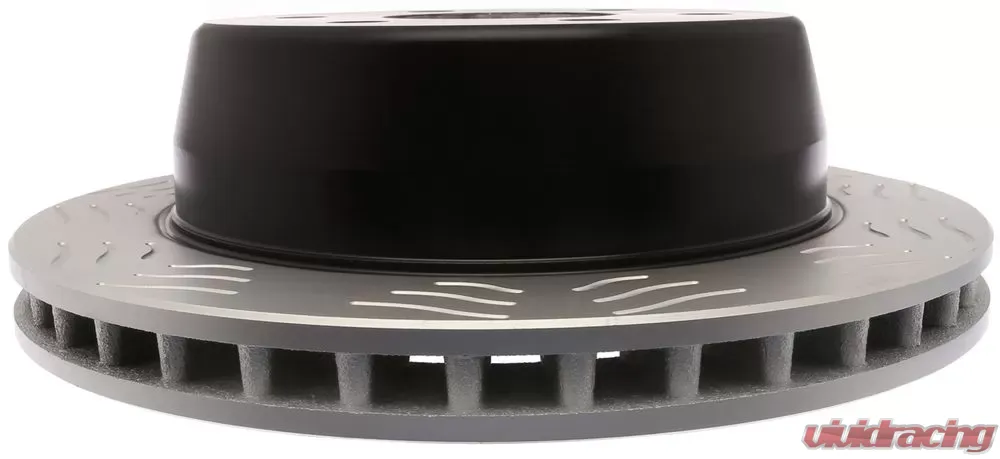

AC Delco Performance Rear Disc Brake Rotor

$150.96

AC Delco

Model #18A1412SD


Shopper Award

ACDelco Gold (Professional) Performance (Severe Duty) Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. These brake rotors provide reliable vehicle braking power. They feature a thickness variation that helps to minimize pedal pulsation, noise, and help to extend brake pad life. These brake rotors meet the SAE standard for structural integrity with OE matched material, delivering guaranteed performance. Black and gray fusion coating provides corrosion protection. These rotors are uniquely designed for off road vehicles, SUVs, trucks, and fleet trucks. ACDelco Gold (Professional) Performance (Severe Duty) Disc Brake Rotors are ready to be installed right out of the box - no machining required. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional.

Features:

  • Match OE vane configuration for reduced brake wear and optimal cooling
  • Damped iron metallurgy reduces noise and dissipates heat
  • Non-directional rotation eliminates the need for unique left and right designations
  • Mill balanced to reduce vibration
  • Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
  • Premium aftermarket replacement part
  • Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
Specifications:
  • Construction: Full Cast
  • Outside Diameter: 330.2
  • Overall Rotor Diameter (mm): 330.2 mm
  • Pad Contact Surface Width: 46.25
  • Nominal Thickness: 30.099
  • Weight (lb): 22.9
  • Bolt Circle Diameter (in): 5.5
  • Height (in): 3.8
  • Discard Thickness: 1.122
  • Nominal Thickness: 1.185
  • Pad Contact Surface Width: 1.8
  • Material: Cast Iron
  • Center Bore Diameter (mm): 78.6 mm
  • Height (mm): 95.5
  • Bolt Circle Diameter (mm): 139.7
  • Discard Thickness: 28.498
  • Bolt Hole Quantity: 6
  • Outside Diameter: 13
  • Width (in): 14.1
  • Center Bore Diameter (in): 3.1 in
  • Length (in): 14.1
  • Programming Required: No
  • Solid Or Vented Type Rotor: Vented
  • Slotted: Yes
  • ABS Sensor Ring Included: No
  • Grade Type: Performance
  • Disc Finish: Turned
  • Hat Finish: Turned
  • Surface Type: Smooth
  • Rust Resistant Coating: Yes
Fitment:
  • GMC Savana 1500 2006-2014
  • GMC Sierra 1500 2006-2006
  • GMC Yukon 2006-2006
  • GMC Yukon XL 1500 2006-2006
  • Chevrolet Express 1500 2007-2014
  • GMC Savana 1500 2007-2014
  • Chevrolet Express 1500 2008-2014
  • GMC Savana 1500 2008-2014
  • Chevrolet Express 1500 2009-2014
  • GMC Savana 1500 2009-2014
  • Chevrolet Express 1500 2010-2014
  • GMC Savana 1500 2010-2014
  • Chevrolet Express 1500 2011-2014
  • GMC Savana 1500 2011-2014
  • Chevrolet Express 1500 2012-2014
  • GMC Savana 1500 2012-2014
  • Chevrolet Express 1500 2013-2014
  • GMC Savana 1500 2013-2014
  • Chevrolet Express 1500 2014-2014
  • GMC Savana 1500 2014-2014

Other Part Numbers:
AC Delco #88875163
