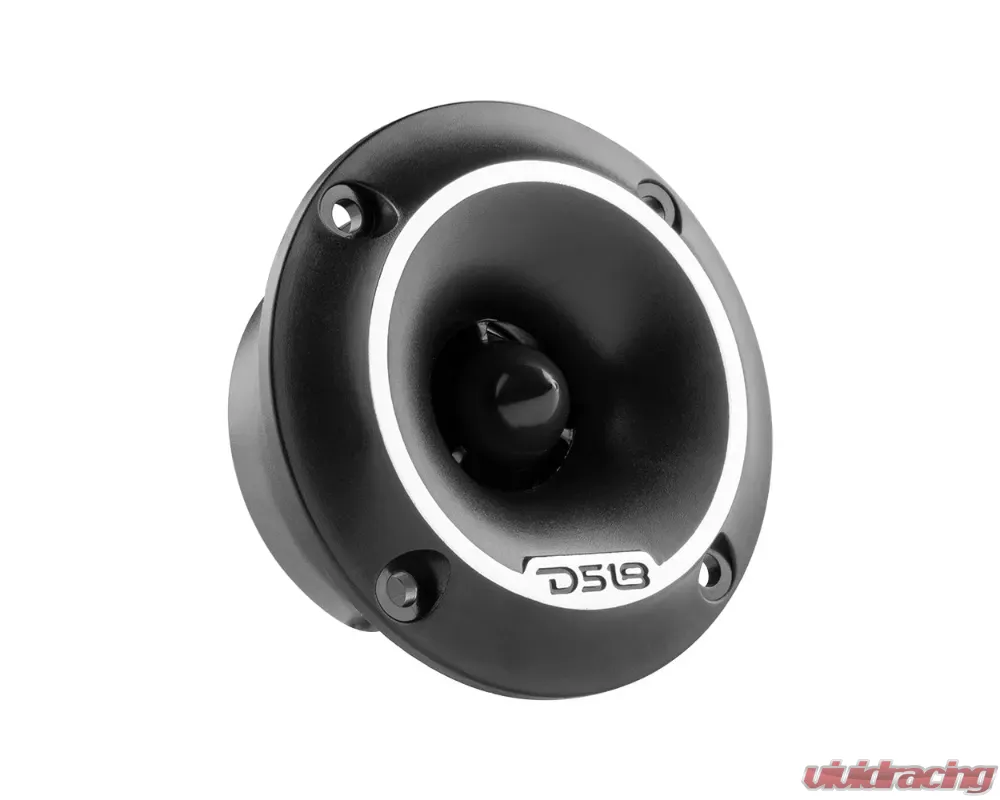

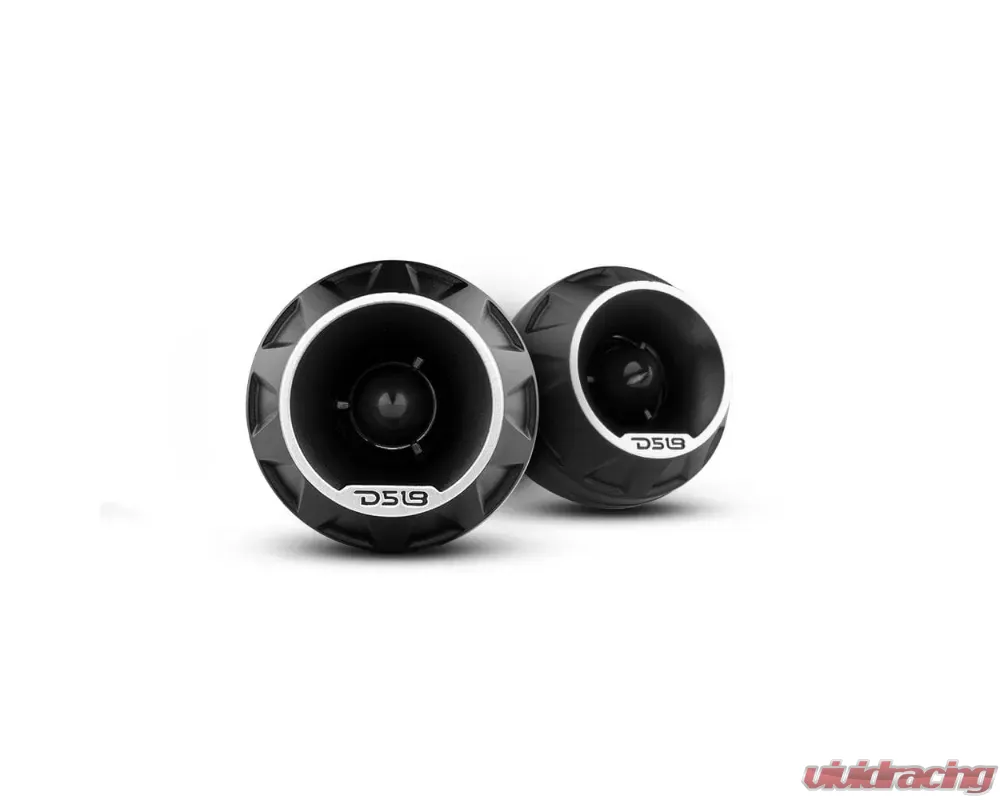

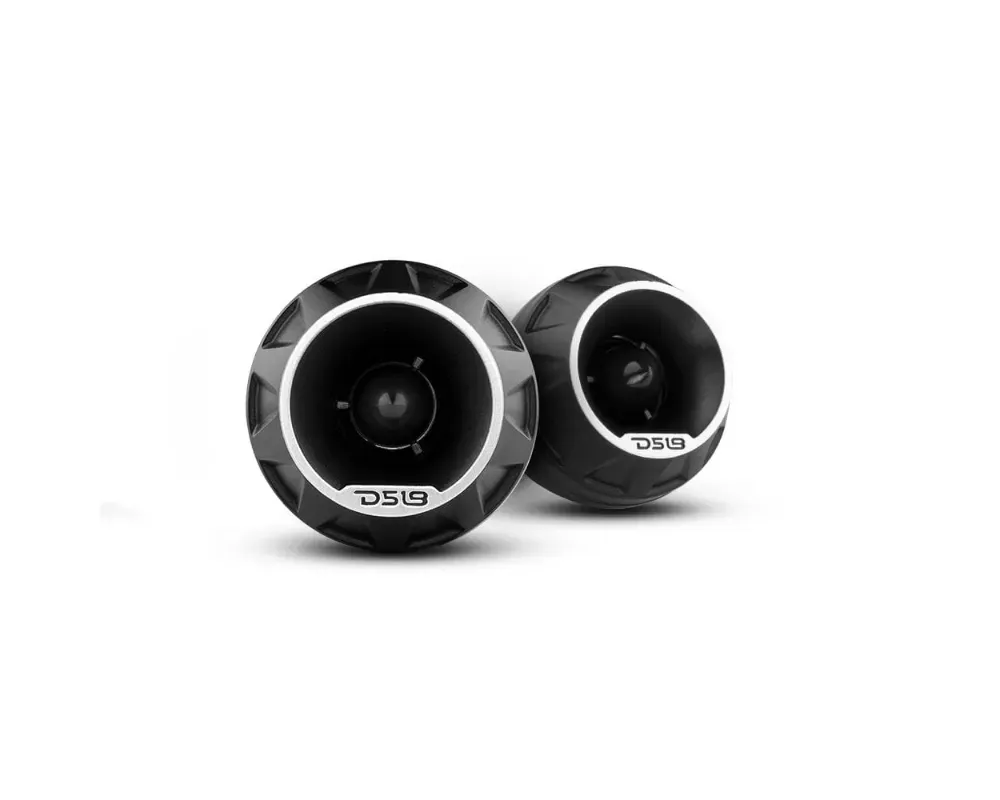

DS18 3" Surface/Flush/Angle High Compression Neodymium Super Bullet Tweeter

Versatility is a necessity in audio these days. You need multiple options and looks for different situations of installation or even your mood. DS18 has modular tweeters that have multiple mounting options and also a variant of looks that are all easily changed with a flick of the wrist.

This tweeter has three "modes" or ways it can be mounted with included modular pieces. Mode 1, flush mount. Mode 2, angle mount. Mode 3, flat mount. Which all are very useful for all kinds of mounting options but also give the tweeters a new look for every new mount used. Peak power is set to 200w with an AES rating of 50w with a very high sensitivity of 102dB so it does not take a lot of wattage to get these loud.

Features:

Fully modular mounting design with included hardware.
Each new design give the tweeter a fresh look.
200w Peak and 50w AES power handling so not a lot of power is required.
1" Kapton CCA voice coil with Neodymium magnet structure.

Technical Details

Nominal Diameter Flush/ Surface: 3"/2.2"
Nominal Impedance: 4 Ohms
Peak Power Handling: 200 Watts
Program Power Handling: 100 Watts
AES Power Handling: 50 Watts
Sensitivity(1W/1W): 102 dB
Frequency Response: 3KHz-20KHz
Recommended Hi Pass Crossover: 2 KHz

MOTOR

Voice Coil Diameter: 1"
Voice Coil Former Material: Kapton
Winding Material: CCA
Diaphragm Material: Aluminum Alloy
Frame/Body Material: ABS
Magnet Material: Neodymium

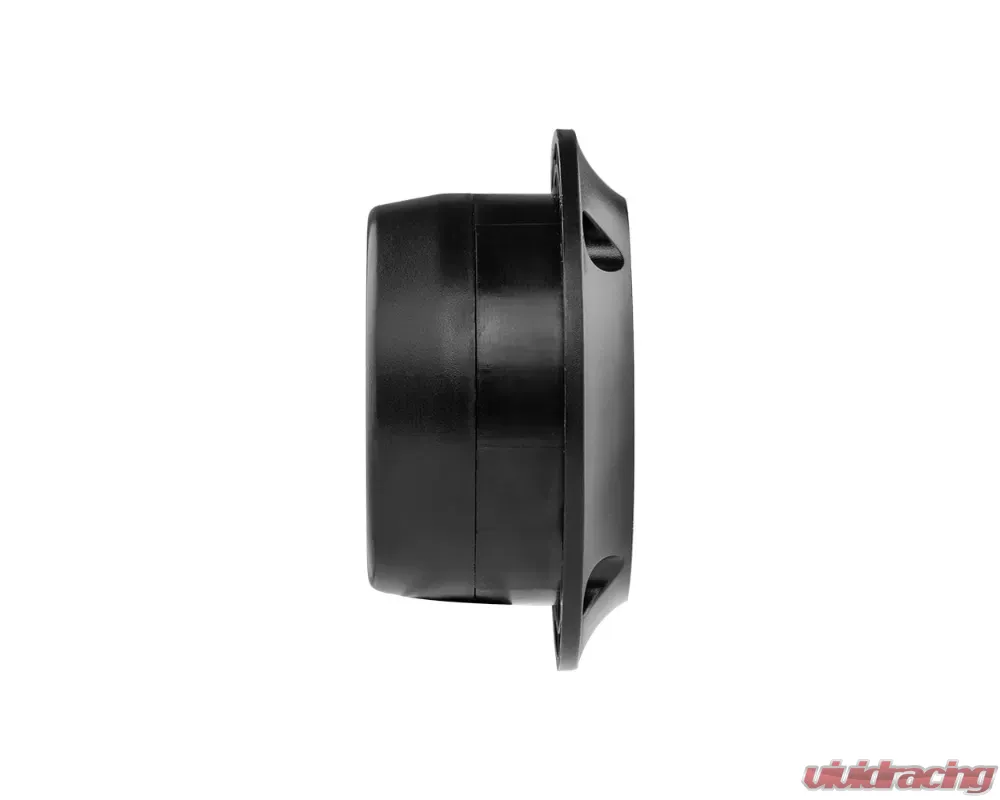

MODE 1 (FLUSH MOUNT)

Overall Diameter: 2.95"
Overall Depth: 1.39"
Front Mount Baffle Cutout: 2.26"
Mounting Depth: 1"

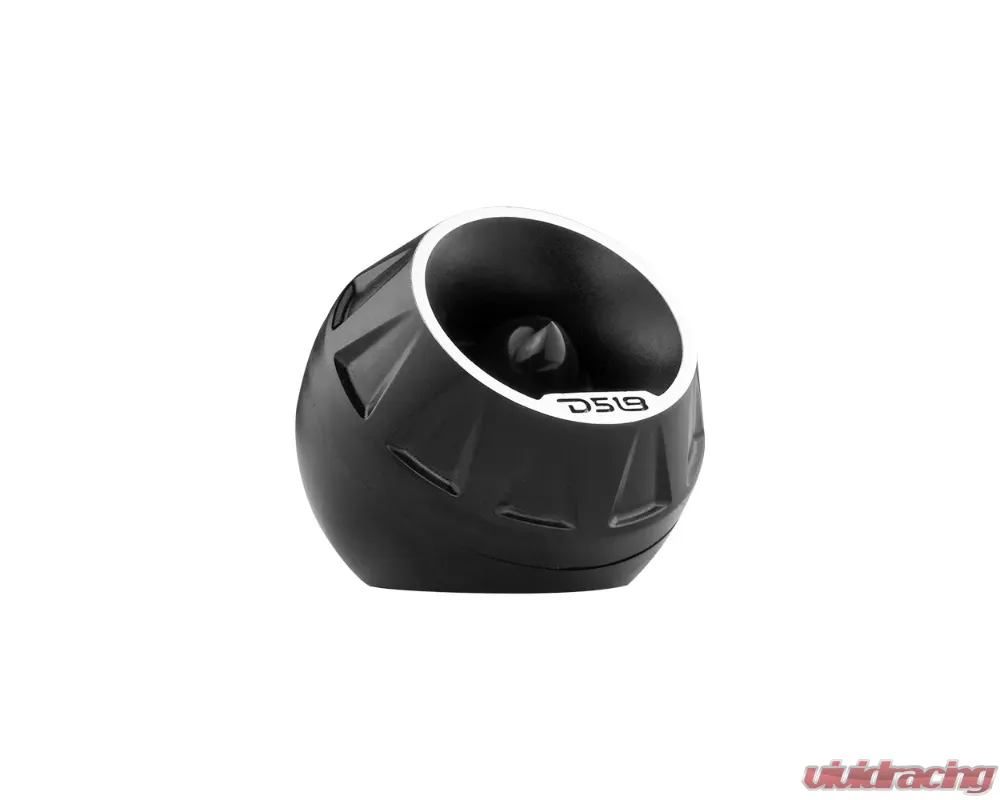

MODE 2 (ANGLE MOUNT)

Overall Wide: 2.26"
Overall Height: 2.1"
Overall Depth: 2.3"

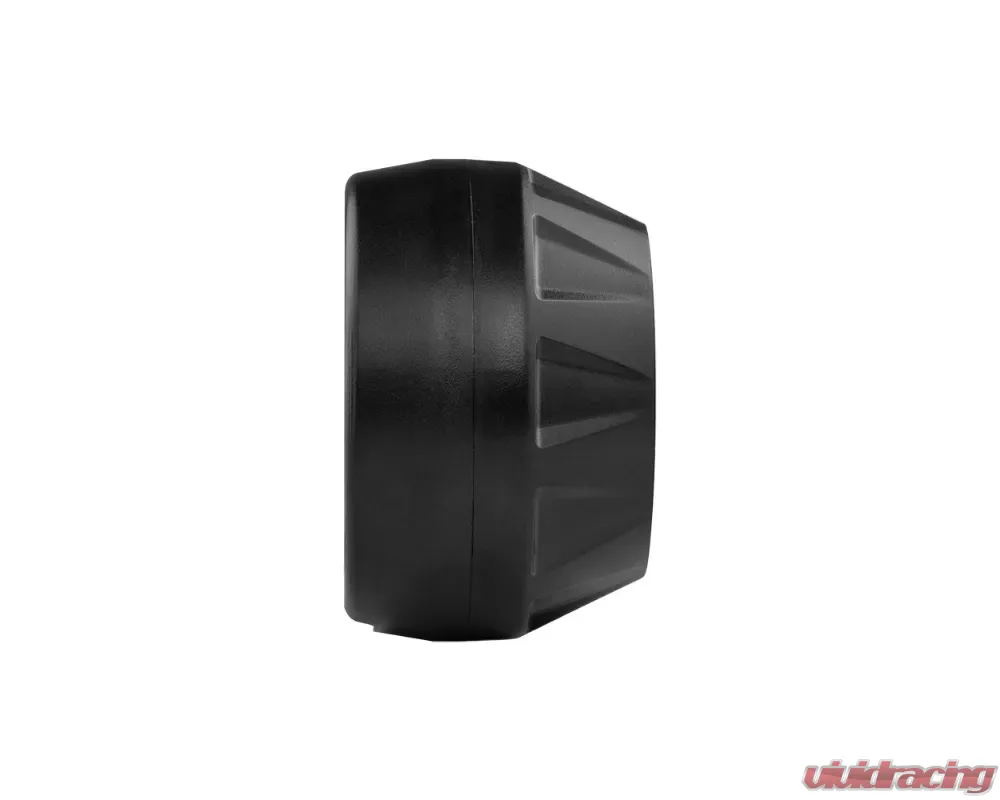

MODE 3 (FLAT SURFACE MOUNT)

Overall Diameter: 2.26"
Overall Height: 1.4"

Install Instructions:

For Instructions CLICK HERE!

Other Part Numbers:
DS18 #PRO-TSQ3IN1-FXVX
