  5. NGK Ruthenium HX Spark Plug Box of 4 (LTR5AHX)

Shop For Your Vehicle

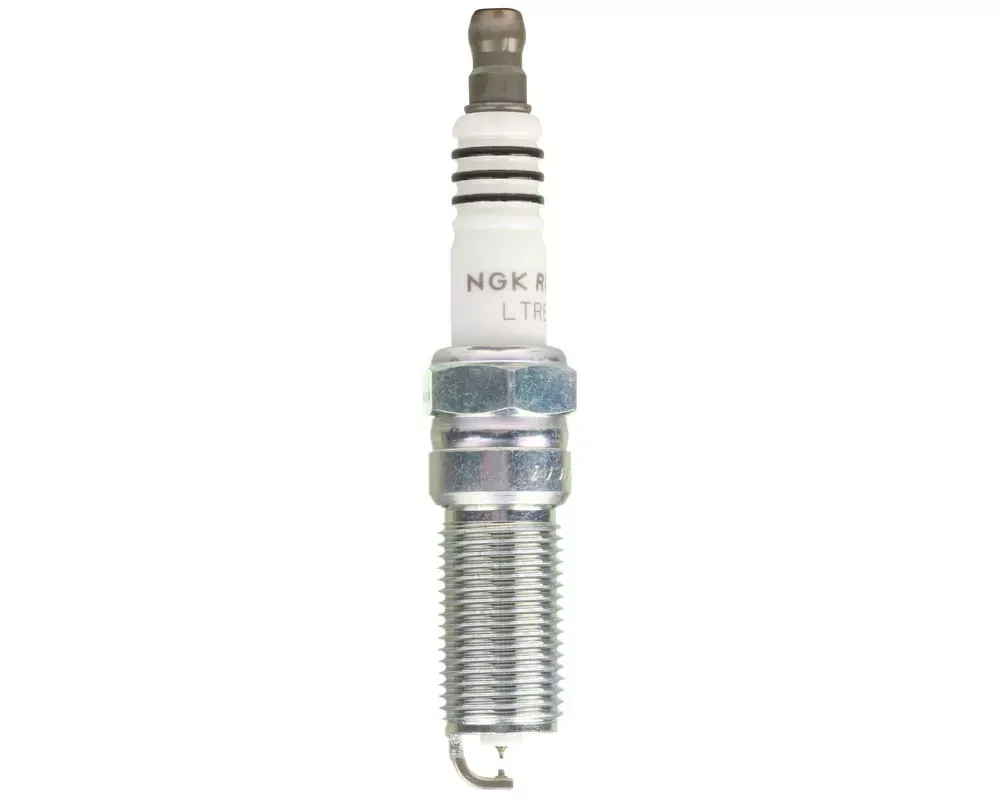

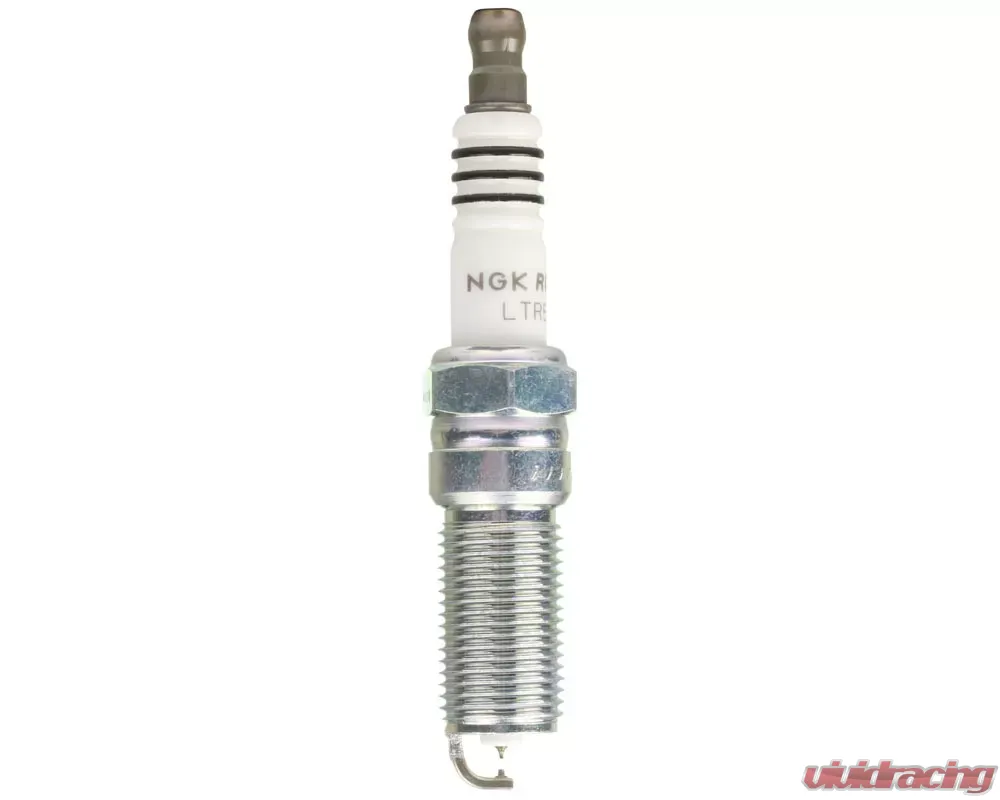

NGK Ruthenium HX Spark Plug Box of 4 (LTR5AHX) - 90220

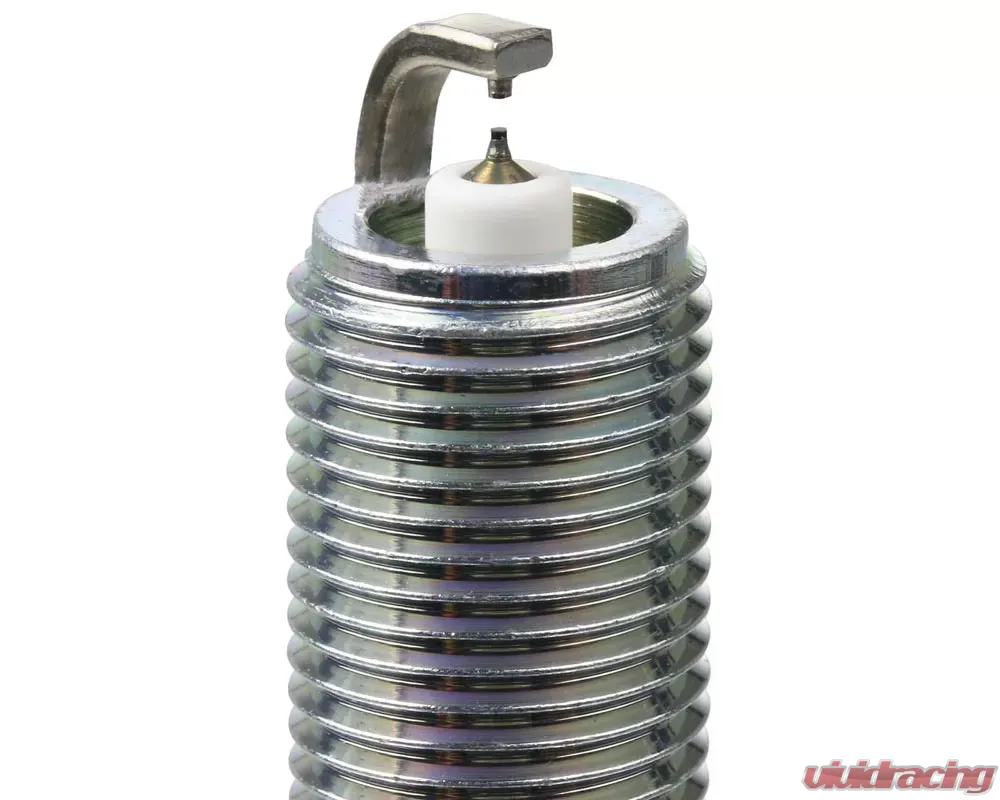

NGK Ruthenium HX Spark Plug Box of 4 (LTR5AHX) - 90220 - Image 2
Show All
  See more parts for your Buick Envision

NGK Ruthenium HX Spark Plug Box of 4 (LTR5AHX)

$58.60

NGK Spark Plugs

Model #90220

Help Me Decide Add To Wishlist Price Match

Shopper Award

NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.

NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for today's modern vehicles. NGK's patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy.

Features:

  • High Ignitability Double Fine Electrode Design: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
  • Ruthenium Alloy Center Electrode: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
  • Platinum Pin Type Ground Electrode: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
  • Solid Copper Core: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • Trivalent Metal Plating: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Recommended Usage: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
Specifications:
  • Stock Number: 90220
  • Part Number: LTR5AHX
  • Resistance: 5000
  • Ground Electrode Tip Design: Dual Fine Electrode - High Ignitability
  • Ground Configuration: Standard
  • Ground Electrode Core Material: Nickel
  • Electrical Terminal Type: Non-Removable Nut
  • Center Electrode Core Material: Copper
  • Center Electrode Tip Material: Ruthenium
  • Gap Size: .044
  • Ground Electrode Quantity: 1
  • Hex Size: 5/8
  • Insulator Height: 52.50
  • Manufacturer Heat Range: 5
  • Seat Type: Tapered
  • Reach: 25.00
  • Thread Diameter: 14.00

Other Part Numbers:
NGK Spark Plugs #ngk90220
NGK Spark Plugs #LTR5AHX

Proposition 65

/!\ warningWARNING: Cancer and Reproductive Harm

https://www.P65Warnings.ca.gov

Vehicle Engine Notes
2010
 Buick Allure

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2017-2020
 Buick Envision

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2018-2019
 Buick LaCrosse

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2010-2016
 Buick LaCrosse

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2004-2007
 Buick Rainier

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2011-2017
 Buick Regal

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2012-2017
 Buick Verano

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2013-2017
 Cadillac ATS

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2015-2020
 Cadillac Escalade

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2015-2020
 Cadillac Escalade ESV

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2019-2020
 Chevrolet Blazer

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2016-2020
 Chevrolet Camaro

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2012-2015
 Chevrolet Captiva Sport

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2007-2010
 Chevrolet Cobalt

 		4 Cylinder 2.2 Liter
  • Gap 0.044"
2006-2008
 Chevrolet Cobalt

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2015-2020
 Chevrolet Colorado

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2007-2012
 Chevrolet Colorado

 		5 Cylinder 3.7 Liter
  • Gap 0.044"
2007-2012
 Chevrolet Colorado

 		4 Cylinder 2.9 Liter
  • Gap 0.044"
2004-2006
 Chevrolet Colorado

 		5 Cylinder 3.5 Liter
  • Gap 0.044"
2004-2006
 Chevrolet Colorado

 		4 Cylinder 2.8 Liter
  • Gap 0.044"
2014-2019
 Chevrolet Corvette

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2010-2017
 Chevrolet Equinox

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2018-2020
 Chevrolet Express 2500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2018-2020
 Chevrolet Express 3500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2006-2011
 Chevrolet HHR

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2007-2011
 Chevrolet HHR

 		4 Cylinder 2.2 Liter
  • Gap 0.044"
2017-2019
 Chevrolet Impala

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2014-2016
 Chevrolet Impala

 		4 Cylinder 2.5 Liter
  • New Model
  • Gap 0.044"
2014
 Chevrolet Impala

 		4 Cylinder 2.4 Liter
  • New Model
  • Gap 0.036"
2013-2015
 Chevrolet Malibu

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2013-2014
 Chevrolet Malibu

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2008-2012
 Chevrolet Malibu

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2007-2008
 Chevrolet Malibu

 		4 Cylinder 2.2 Liter
  • Gap 0.044"
2016
 Chevrolet Malibu Limited

 		4 Cylinder 2.5 Liter
  • Carryover Model
  • Gap 0.044"
2012-2014
 Chevrolet Orlando

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2014-2020
 Chevrolet Silverado 1500

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2014-2020
 Chevrolet Silverado 1500

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2014-2020
 Chevrolet Silverado 1500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2019
 Chevrolet Silverado 1500 LD

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2020
 Chevrolet Silverado 2500 HD

 		8 Cylinder 6.6 Liter
  • Gap 0.040"
2020
 Chevrolet Silverado 3500 HD

 		8 Cylinder 6.6 Liter
  • Gap 0.040"
2019-2020
 Chevrolet Suburban

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2015-2020
 Chevrolet Suburban

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2019
 Chevrolet Suburban 3500 HD

 		8 Cylinder 6.0 Liter
  • Gap 0.040"
2018-2020
 Chevrolet Tahoe

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2015-2020
 Chevrolet Tahoe

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2002, 2006-2009
 Chevrolet Trailblazer

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2003-2005
 Chevrolet Trailblazer

 		6 Cylinder 4.2 Liter
  • Gap 0.050"
2002-2006
 Chevrolet Trailblazer EXT

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2013-2018
 Ford C-Max

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2007-2011
 Ford Edge

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2009-2020
 Ford Escape

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2012
 Ford Flex

 		6 Cylinder 3.5 Liter
  • To 2/27/2012
  • Gap 0.052"
2009-2011
 Ford Flex

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2010-2020
 Ford Fusion

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2013-2020
 Ford Fusion

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2010-2012
 Ford Fusion

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2006-2009
 Ford Fusion

 		4 Cylinder 2.3 Liter
  • Gap 0.052"
2019-2020
 Ford Police Responder Hybrid

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2019-2020
 Ford SSV Plug-In Hybrid

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2008-2012
 Ford Taurus

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2008-2009
 Ford Taurus X

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2014-2020
 Ford Transit Connect

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2018-2020
 GMC Acadia

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2017
 GMC Acadia

 		4 Cylinder 2.5 Liter
  • New Model
  • Gap 0.044"
2015-2020
 GMC Canyon

 		4 Cylinder 2.5 Liter
  • Gap 0.044"
2007-2012
 GMC Canyon

 		5 Cylinder 3.7 Liter
  • Gap 0.044"
2007-2012
 GMC Canyon

 		4 Cylinder 2.9 Liter
  • Gap 0.044"
2004-2006
 GMC Canyon

 		5 Cylinder 3.5 Liter
  • Gap 0.044"
2004-2006
 GMC Canyon

 		4 Cylinder 2.8 Liter
  • Gap 0.044"
2002, 2006-2009
 GMC Envoy

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2003-2005
 GMC Envoy

 		6 Cylinder 4.2 Liter
  • Gap 0.050"
2002-2006
 GMC Envoy XL

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2004-2005
 GMC Envoy XUV

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2018-2020
 GMC Savana 2500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2018-2020
 GMC Savana 3500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2014-2020
 GMC Sierra 1500

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2014-2020
 GMC Sierra 1500

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2014-2020
 GMC Sierra 1500

 		6 Cylinder 4.3 Liter
  • Gap 0.040"
2019
 GMC Sierra 1500 Limited

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2020
 GMC Sierra 2500 HD

 		8 Cylinder 6.6 Liter
  • Gap 0.040"
2020
 GMC Sierra 3500 HD

 		8 Cylinder 6.6 Liter
  • Gap 0.040"
2010-2017
 GMC Terrain

 		4 Cylinder 2.4 Liter
  • Gap 0.036"
2015-2020
 GMC Yukon

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2015-2020
 GMC Yukon

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2015-2020
 GMC Yukon XL

 		8 Cylinder 6.2 Liter
  • Gap 0.040"
2015-2020
 GMC Yukon XL

 		8 Cylinder 5.3 Liter
  • Gap 0.040"
2007-2010
 Hummer H3

 		5 Cylinder 3.7 Liter
  • Gap 0.044"
2006
 Hummer H3

 		5 Cylinder 3.5 Liter
  • Gap 0.044"
2009-2010
 Hummer H3T

 		5 Cylinder 3.7 Liter
  • Gap 0.044"
2003-2008
 Isuzu Ascender

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2006
 Isuzu i-280

 		4 Cylinder 2.8 Liter
  • Gap 0.044"
2007-2008
 Isuzu i-290

 		4 Cylinder 2.9 Liter
  • Gap 0.044"
2006
 Isuzu i-350

 		5 Cylinder 3.5 Liter
  • Gap 0.044"
2007-2008
 Isuzu i-370

 		5 Cylinder 3.7 Liter
  • Gap 0.044"
2009-2012
 Lincoln MKS

 		6 Cylinder 3.7 Liter
  • Gap 0.052"
2012
 Lincoln MKT

 		6 Cylinder 3.7 Liter
  • To 2/27/2012
  • Gap 0.052"
2010-2011
 Lincoln MKT

 		6 Cylinder 3.7 Liter
  • Gap 0.052"
2007-2010
 Lincoln MKX

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2013-2020
 Lincoln MKZ

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2007-2012
 Lincoln MKZ

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2011-2012
 Lincoln MKZ

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2010-2013
 Mazda 3

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2011-2013
 Mazda 3

 		4 Cylinder 2.0 Liter
  • Non-SkyActiv Eng.
  • Gap 0.052"
2006-2010
 Mazda 3

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2006-2009
 Mazda 3

 		4 Cylinder 2.3 Liter
  • Gap 0.052"
2010-2013
 Mazda 3 Sport

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2011-2013
 Mazda 3 Sport

 		4 Cylinder 2.0 Liter
  • Non-SkyActiv Eng.
  • Gap 0.052"
2009-2010
 Mazda 3 Sport

 		4 Cylinder 2.0 Liter
  • Gap 0.052"
2012-2017
 Mazda 5

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2008-2010
 Mazda 5

 		4 Cylinder 2.3 Liter
  • Gap 0.052"
2009-2013
 Mazda 6

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2006-2008
 Mazda 6

 		4 Cylinder 2.3 Liter
  • Gap 0.052"
2010-2012
 Mazda CX-7

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2009-2011
 Mazda Tribute

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2009-2011
 Mercury Mariner

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2010-2011
 Mercury Milan

 		4 Cylinder 2.5 Liter
  • Gap 0.052"
2006-2009
 Mercury Milan

 		4 Cylinder 2.3 Liter
  • Gap 0.052"
2008-2009
 Mercury Sable

 		6 Cylinder 3.5 Liter
  • Gap 0.052"
2002-2004
 Oldsmobile Bravada

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2007-2010
 Pontiac G5

 		4 Cylinder 2.2 Liter
  • Gap 0.044"
2007-2008
 Pontiac G5

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2006-2010
 Pontiac G6

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2006
 Pontiac Pursuit

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2006-2009
 Pontiac Solstice

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2005-2009
 Saab 9-7x

 		6 Cylinder 4.2 Liter
  • Gap 0.044"
2007-2009
 Saturn Aura

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2006-2007
 Saturn Ion

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2007
 Saturn Ion

 		4 Cylinder 2.2 Liter
  • Gap 0.044"
2007-2010
 Saturn Sky

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2007-2010
 Saturn Vue

 		4 Cylinder 2.4 Liter
  • Gap 0.044"
2007
 Saturn Vue

 		4 Cylinder 2.2 Liter
  • Gap 0.044"

NGK Spark Plugs Banner

Who is NGK?

NGK is an automotive parts company that was founded in 1936. The company has been in the automotive industry for more than 80 years and they specialize in creating original factory parts to aftermarket automotive parts for a variety of vehicles. Today, the company is widely recognized as the industry leader when it comes to ignition system parts and is trusted by enthusiasts and professional mechanics all over the world.

Reaching the Far Corners of the Globe

NGK has become a global brand is practically visible all over the globe. They have facilities based in the USA, Mexico, Canada, the United Kingdom, Finland, France, Germany, Italy, Poland, Russia, Spain, Turkey, South Africa, and Brazil.

The company utilizes the industry's most advanced manufacturing facility. It houses hi-tech tools that help them create parts that are accurate and precise.

Due to their reputation as a company that provides top quality products, automotive companies have partnered with them to be the leading ignition system supplier. The company's drive to continuously innovate itself and its products has helped the automotive industry move forward.

Purchase NGK at Vivid Racing

If you are in search of high-quality spark plugs, oxygen sensors, and high tension wires that would not leave you hanging on the road, then NGK is the brand for you. With decades of experience under them their belts, you know that they are a company that you could put your trust into. Visit Vivid Racing and check out all their list of products that will fit your specific needs and vehicles.





Check out these other great products

NGK Buick Allure 2010 Direct Ignition Coil Boot - 58979 - Image 2

NGK Buick Allure 2010 Direct Ignition Coil Boot

Model #58979

$8.80
NGK Buick Allure 2008-2005 Direct Ignition Coil Boot - 58984 - Image 3

NGK Buick Allure 2008-2005 Direct Ignition Coil Boot

Model #58984

$10.07
