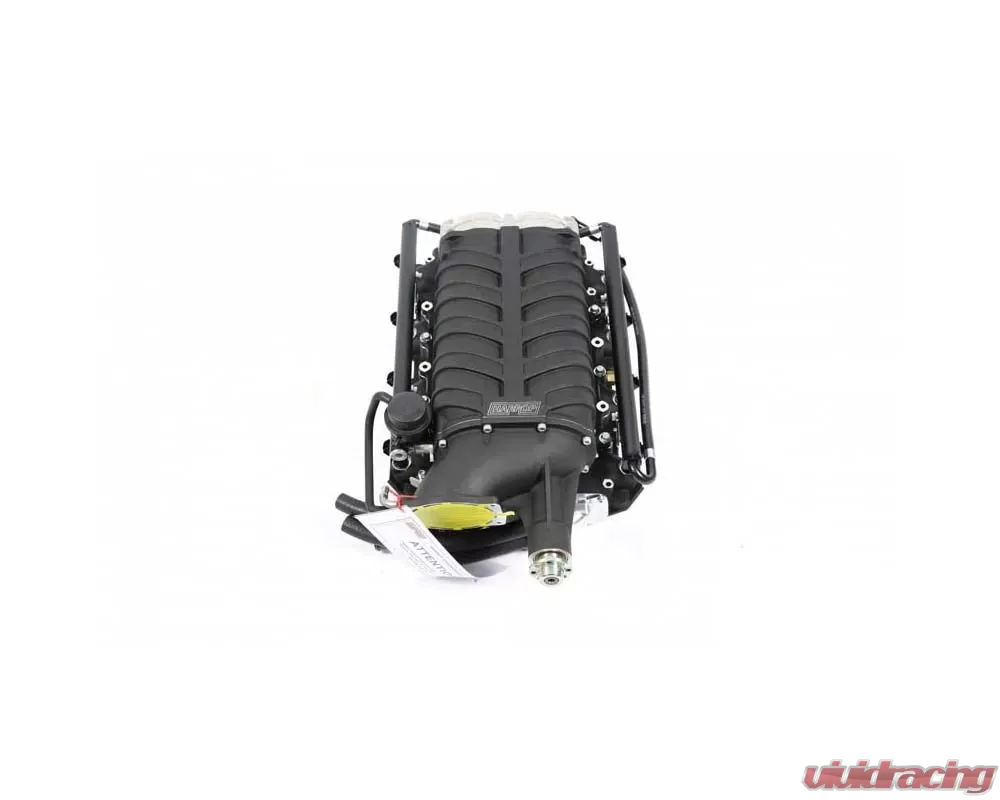

Harrop LS1/LS2 TVS2650 Supercharger Kit

Harrop TVS Superchargers offer the latest in supercharger technology, utilising the same Eaton TVS? system as featured on the ZR1 Corvette and the ZL1 Camaro.

Harrop Superchargers feature extensive upgrades to the cooling system, to ensure optimum thermal efficiency with the inclusion of twin pass intercooler cores in the manifold integrated with a front mount radiator and high flow Bosch intercooler pump. The improved intercooler system provides greater thermal and volumetric efficiency to unleash the performance potential of the late model LS engine family.

The TVS2650 Supercharger Kit is the ultimate system for LS engine equipped or retrofitted vehicles. Having been extensively tested and developed for over two years using SAE standards, the R2650 is validated to OEM specifications and resets the performance potential for positive displacement supercharger technology. Each unit is then individually tested in-house on a dynamometer to ensure reliability and durability.

View Technical Guide Here

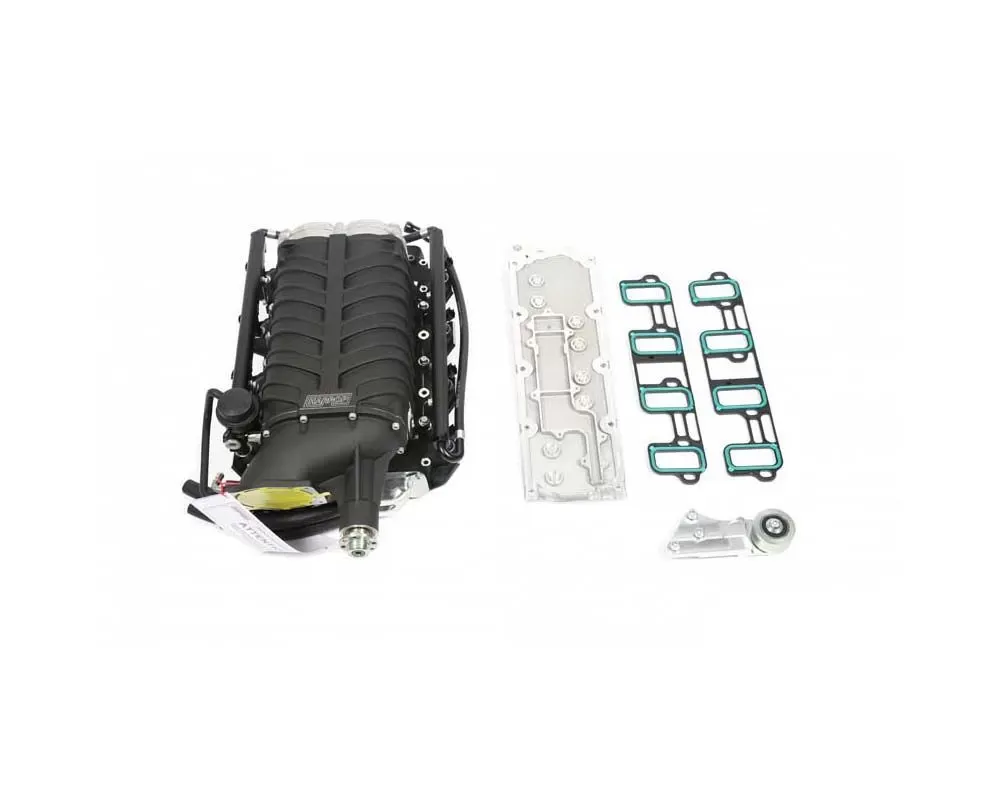

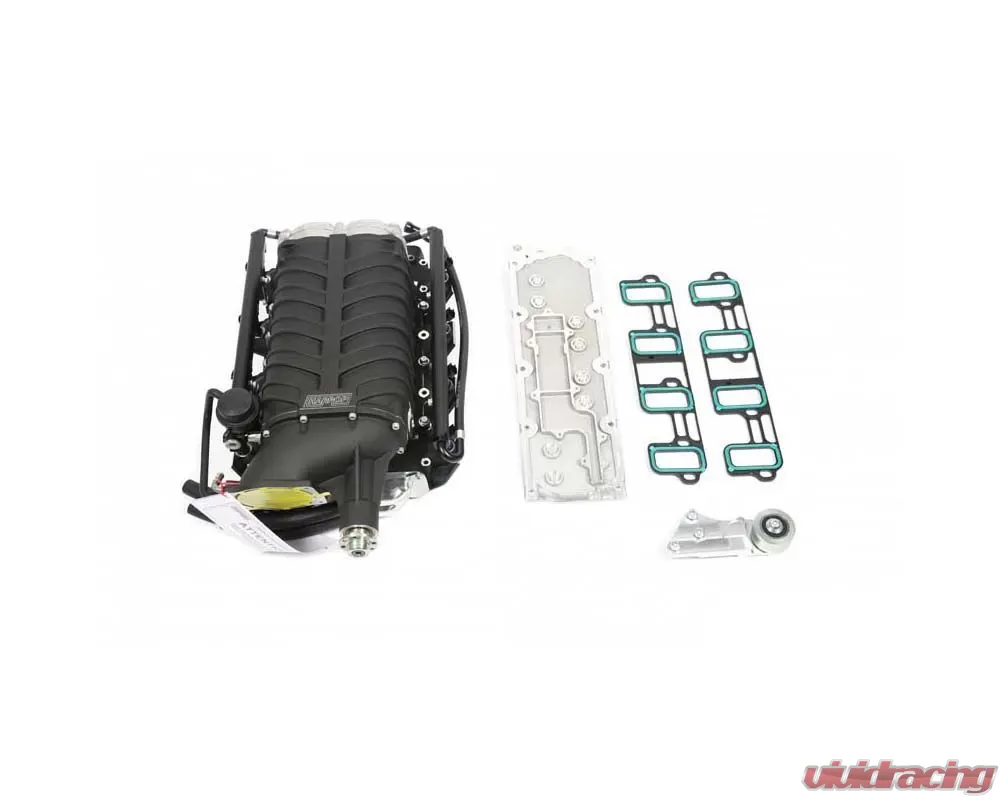

Features:

• Utilising the latest in Eaton TVS technology with 170-degree twist lobes
• 25 percent more airflow at 18,000 RPM and 14 psi boost than R2300
• High-efficiency water to air integrated intercooler system
• Integrated by-pass for improved driveability
• GM Factory and 102mm Aftermarket throttle body compatible
• Manifold available in cathedral, rectangle or LS7 port geometry

• High efficiency 2650 front drive front inlet supercharger
• Cast inlet manifold including twin intercooler cores, fuel rails and IAT sensor
• Valley plate, and bolts
• Inlet manifold gaskets

• Intake (CAI or OTR)
• Throttle body
• Supercharger Pulley
• Patch looms/Harnesses
• Injectors
• Intercooler kit /front mount heat exchanger
• Install kit including loom extensions, hoses and fittings
• MAP sensor

• There may be additional and/or custom parts required to complete supercharger fitment into an LS swapped vehicle.
• The customer is responsible for checking and determining supercharger engine kit will be suitable for their vehicle.
