KC HiLites Flex Era 1 Flush Mount Backup Light Kit

$395.99

KC Hilites

Model #521


Shopper Award

Looking to mount backup lights to your vehicle? The KC FLEX ERA® 1 Flush Mount Backup Light Kit is a one-stop solution for everything needed from lights to wiring to mounts all in one convenient package.

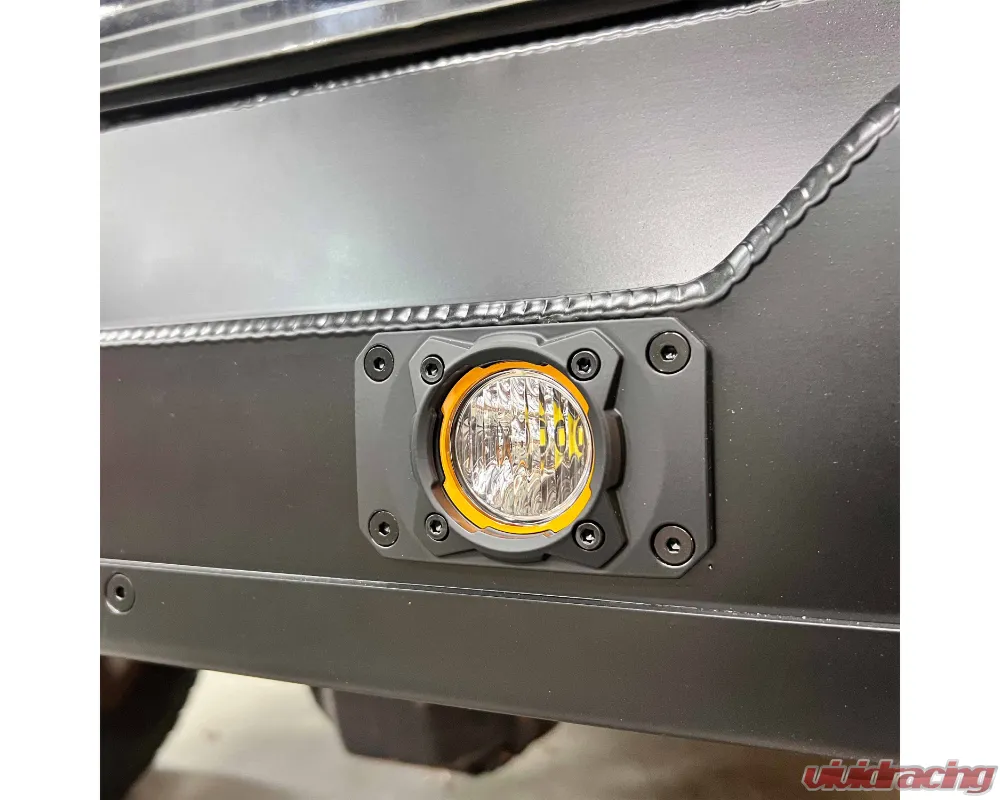

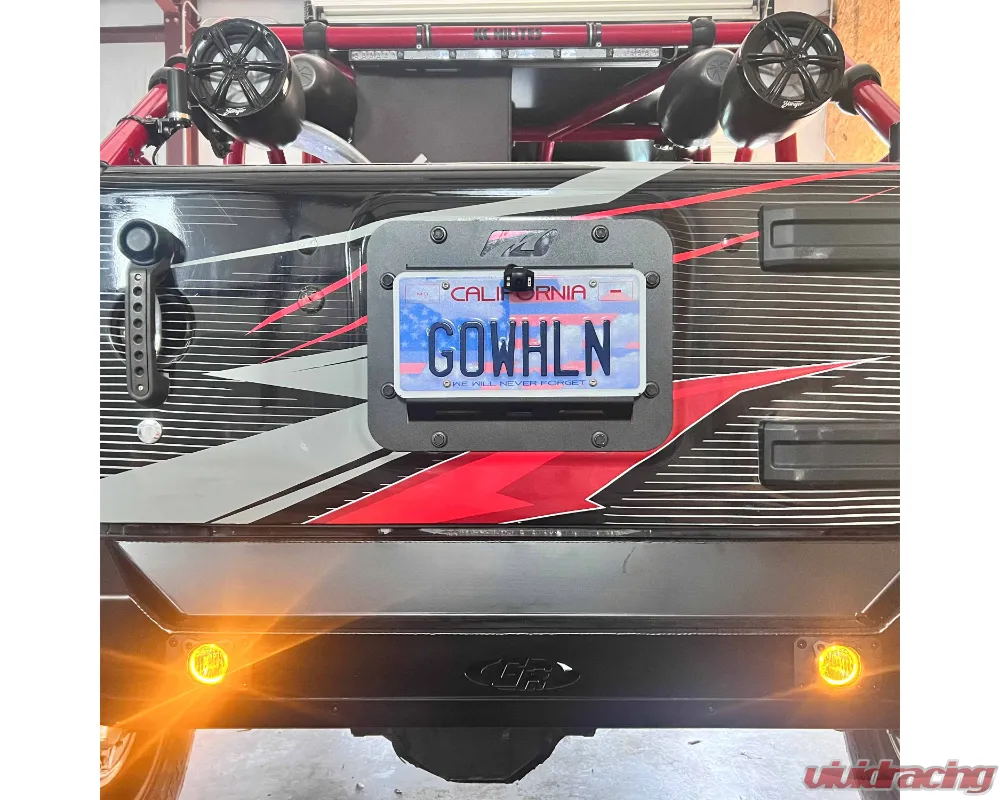

Featuring the powerful and compact FLEX ERA® 1, this kit pairs two FE1s pre-assembled in a spread beam pattern with both a specially designed, extended-length backup harness and a pair of Flush Mount Faceplates to make the installation a breeze. Our KC FLEX ERA® 1 Flush Mount Backup Light Kit is perfect for those seeking a low-profile way to flush mount their lights in a rear bumper for reverse lights or dust lights.

FLEX ERA® 1 LIGHTS
Contained in a compact size of less than 2.7", the FLEX ERA? 1 packs major performance in a versatile package for rear-facing lighting. They feature dual power modes; one mode is for the full, high-power output, and the other illuminates an eclipse-like amber backlight.

FLUSH MOUNT FACEPLATES

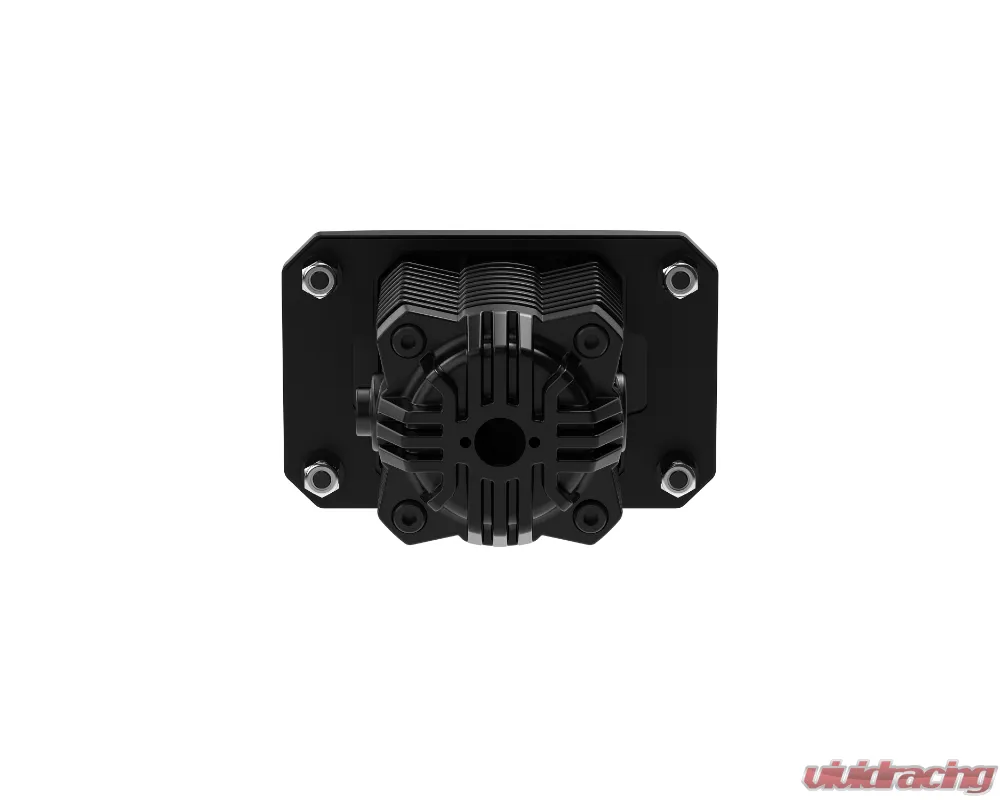

Our Flush Mount Faceplate easily install onto a FLEX ERA 1 light by removing the four corner bolts and replacing the standard faceplate with this flush mount plate. These mounts come complete with the necessary hardware, a cut template, and rubber gaskets for shock and vibration dampening.

CUSTOMIZABLE and FLEXIBLE
We get it, everyone loves to personalize their rig. That's why we stuck with our tried and true FLEX LED? tradition and ensured that you can change and stylize the colored accent bezel to match your rig. The FE1 bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.

Features:

  • 2 x FLEX ERA® 1 Lights in Spread Beam
  • Two Power Modes for Style and Performance
    • Amber LED Backlight
    • Full Power (off-road use only)
  • Flush Mount Faceplates for a clean install on aftermarket or OEM bumpers
  • Designed to fit the bolt pattern on a variety of aftermarket bumpers
  • Black powder-coated for ultimate durability and strength
  • Rubber gasket for shock and vibration dampening
  • IDEAL FOR:
    • Illuminating Immediate Areas as a Work Light
    • Shining Backwords as a Backup/Reverse light
    • Rear Facing Dust Light when paired with the FE1 Performance Yellow Lenses
  • PARTS INCLUDED
    • 2 x FLEX ERA® 1 Lights in Spread Beam
    • 2 x Flush Mount Faceplates (pre-installed)
    • 1 x Complete Wiring Harness for FLEX ERA Backup/Reverse Lights
  • LIGHT PERFORMANCE (PER LIGHT)
    • Lumens: 2,430 lm
    • LUX @ 10 meters: 162 lx
    • Candela: 16,200 cd
    • Beam Distance (Meters): 127.3m
  • SPECIFICATIONS (PER LIGHT)
    • Wattage: 5W (Amber Backlight) / 23W
    • Amp Draw: 0.83 A / 3.83 A
    • Voltage: 9V-36V
    • IP Rating: IP68
Install Instructions: Note:
  • Using the flush mount plate removes the ability to use the Clear or Amber Shields and the Black and Yellow Cover on the FLEX ERA® 1 light.

Proposition 65

/!\ warningWARNING: Cancer and Reproductive Harm

https://www.P65Warnings.ca.gov

Comp Cams Banner

Who is KC Hilites?

KC Hilites has been in the business for more than 50 years and is known to specialize in producing quality and high-performance lighting equipment for off-roaders. It allows enthusiasts to explore the great outdoors without any inhibitions. KC Hilites’ popularity has increased over the years.

Today, it has been at the top of its game and has been the industry leader for aftermarket lighting products.

Outstanding Performance

Lights are critical components in a vehicle. You need to make sure that it is strong enough to let you see what lies ahead. This is so you can react quicker.

KC Hilites is a product that projects a great amount of light, making any obstruction visible from afar. That is why racers choose this as it provides them with the visibility they need, especially when driving at such high speeds. They are designed to provide the driver with optimum visibility, whatever the condition may be.

Built Tough

KC Hilites are built to last. They are made up of high-quality materials and have been tested rigorously to ensure that it would survive the tough condition and harsh environment of offroading. With thousands of vehicles already equipped with KC Hilites, you are sure that you will be getting a product that has been proven.

Complete Package

KC Hilites wants to give its customers a complete experience from start to finish. Hence, all their products come with the necessary hardware required for the installation. The kits include all the relays, wirings, plugs, and brackets, making it hassle-free.

Purchase KC Hilites at Vivid Racing

If you are in the market for a quality lighting product that would give you that much-needed vision at night, then KC Hilites is the brand for you. With various options to choose from, they offer lights and accessories suitable for any model of vehicle. To know more about KC Hilites, visit Vivid Racing and check out what they have in store for you.

KC 23 YEAR LIMITED LIFETIME WARRANTY:
KC HiLiTES warrants that products when delivered in new condition and in its original packaging, will be free of defects in material or workmanship for a period of 23 years from the initial date of purchase. KC under its sole discretion will honor your warranty claim if a product is determined to be defective in material or workmanship. KC’s 23 year limited warranty only applies to the original purchaser with original proof of purchase and may not be transferred under any circumstance.

Products being submitted for RMA requires an RMA number and may need to be returned to KC for inspection by our Warranty Department. During the RMA process, KC will verify that the defect was not caused by negligence, abuse, unauthorized repair or disassembly and at KC’s sole discretion confirm whether the product qualifies to be repaired or replaced under our 23-Year Limited Warranty.
