Intellitronix Digital Bargraph Gauge Panel Chevrolet Truck 1967-1972

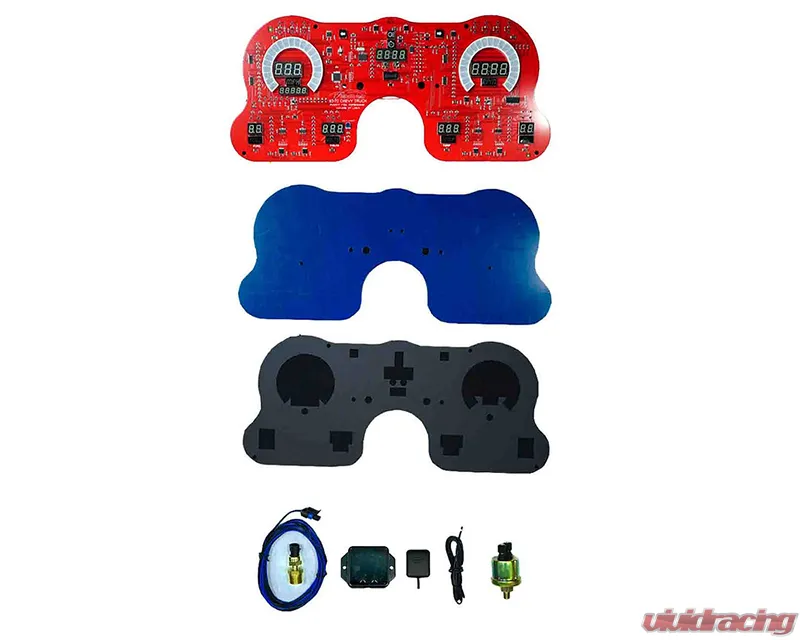

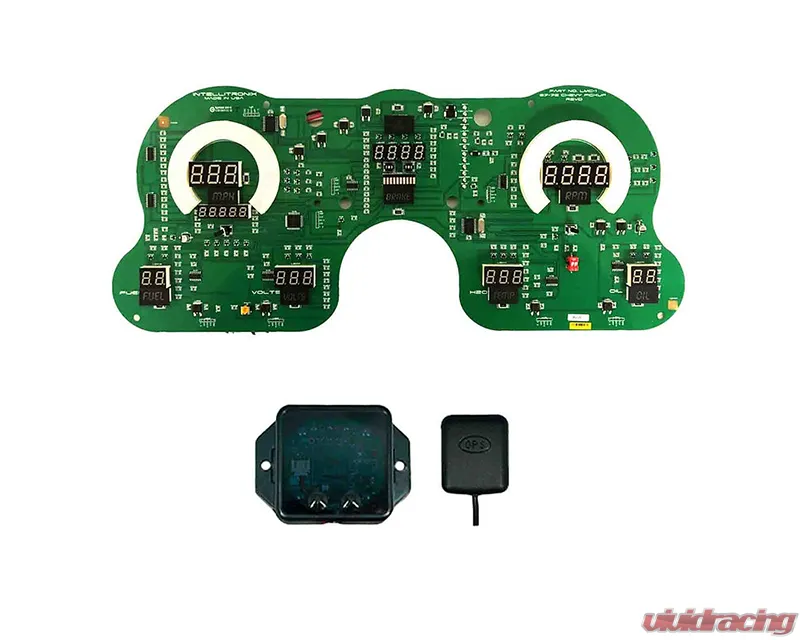

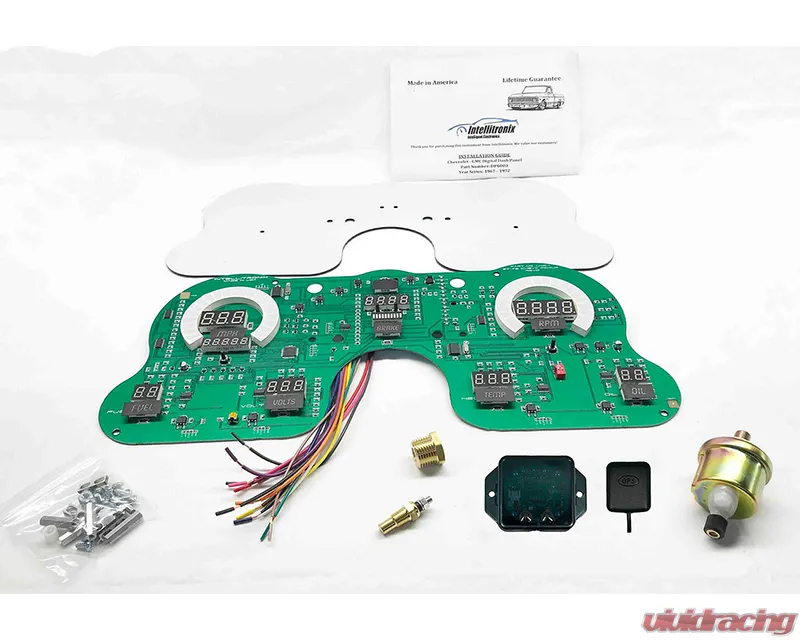

Your vintage 1967-72 Chevy Truck will be the talk of the town with a new 67-72 Chevy Truck LED Digital Bargraph Direct Fit Dash Panel Replacement by Intellitronix. Fully loaded with direct fit printed circuit boards, custom fit "smoked" Plexiglas faceplate, universal temperature, oil pressure, and speedometer sending units for vehicles without electronic transmission or cruise control, and instructions for installation.

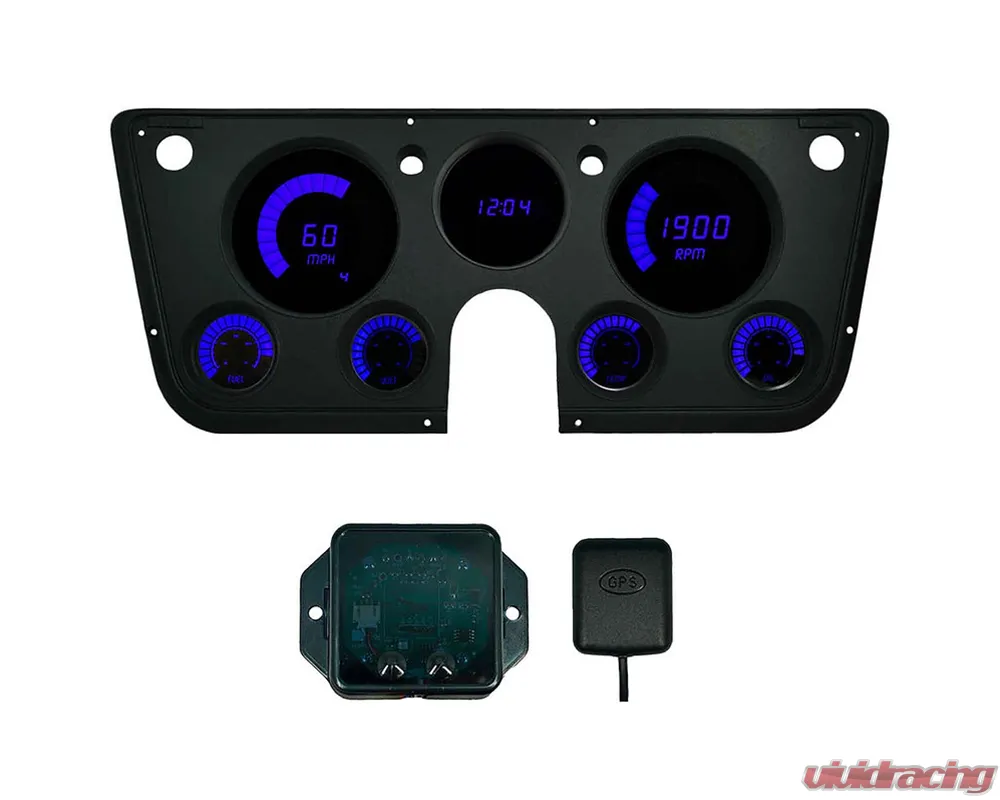

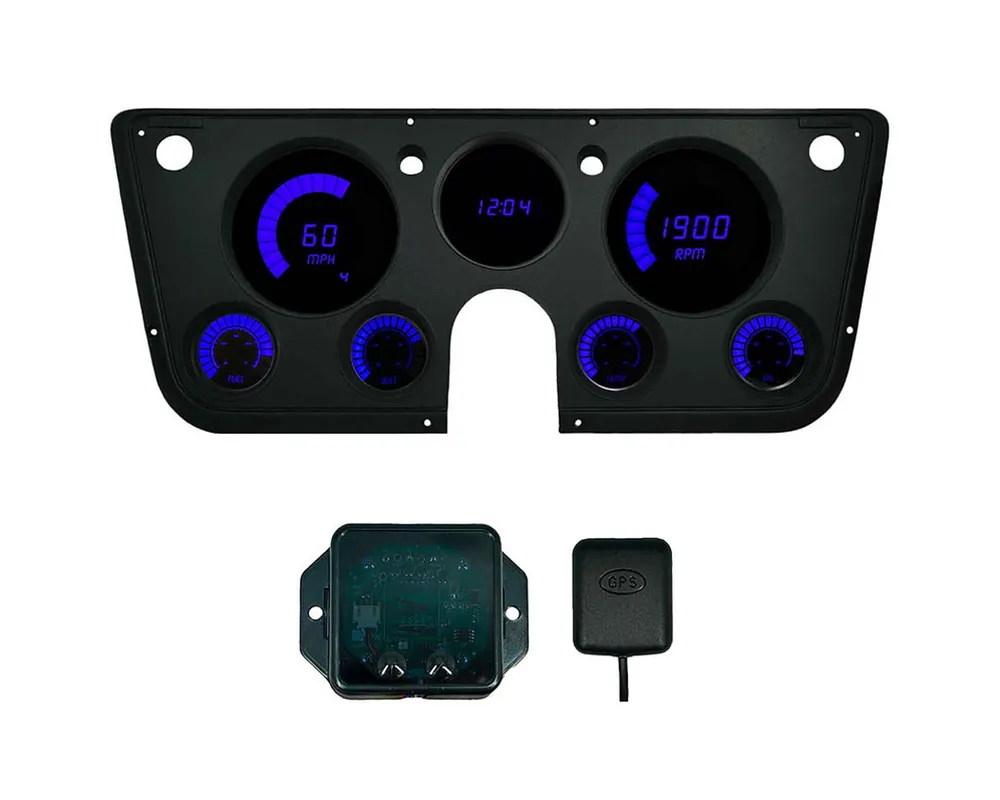

Upgrade your dashboard effortlessly with our Digital Gauge Replacement Panel bundled with a GPS Speedometer Sending Unit. Say goodbye to outdated gauges and hello to modern technology without the hassle. Enjoy the simplicity, ease, and affordability of our bundled offer, ensuring a seamless installation process and accurate speed readings powered by GPS. Transform your driving experience today with our convenient and cost-effective solution.

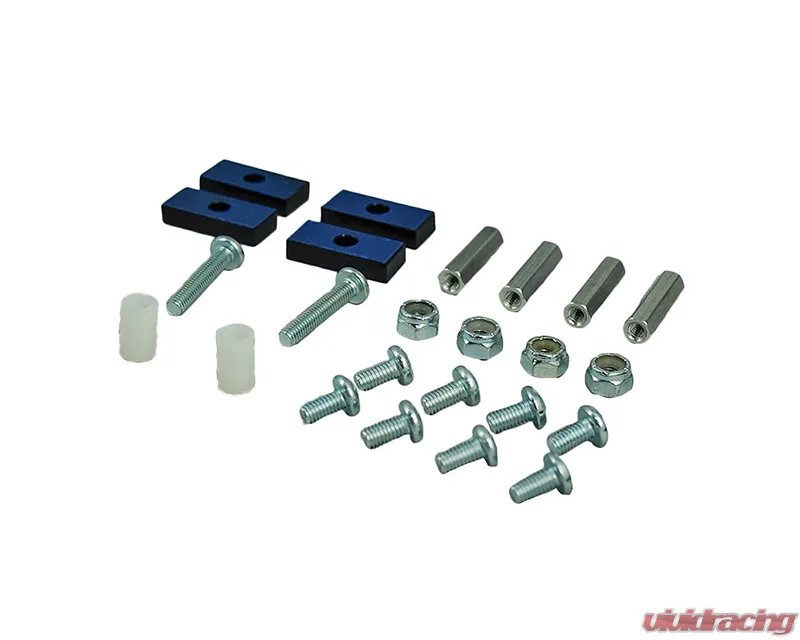

A custom-designed LED bargraph is microprocessor controlled with peak rpm memory recall, and automatic night dimming, shift light, and RPM activated switch that can handle 3 amps. It also includes in-dash mounting hardware and installation instructions. It has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines. Red is best for night driving. Size dimensions are 3 3/8 inches in diameter and 1 1/2 inches deep.

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1/4 mile elapsed time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 with universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.

Features :

• Temperature display reads 160° to 240°F range. Sender S8013 is included.
• The Oil Pressure display reads 0-80 PSI range plus Oil Pressure sender is included.
• Voltmeter display with 12-16 volt range and no sending unit is required.
• Fuel Level display with Empty to Full in 1/4 increments works with most existing fuel level sending unit.
• The panels also feature turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
• Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your truck to the next level.

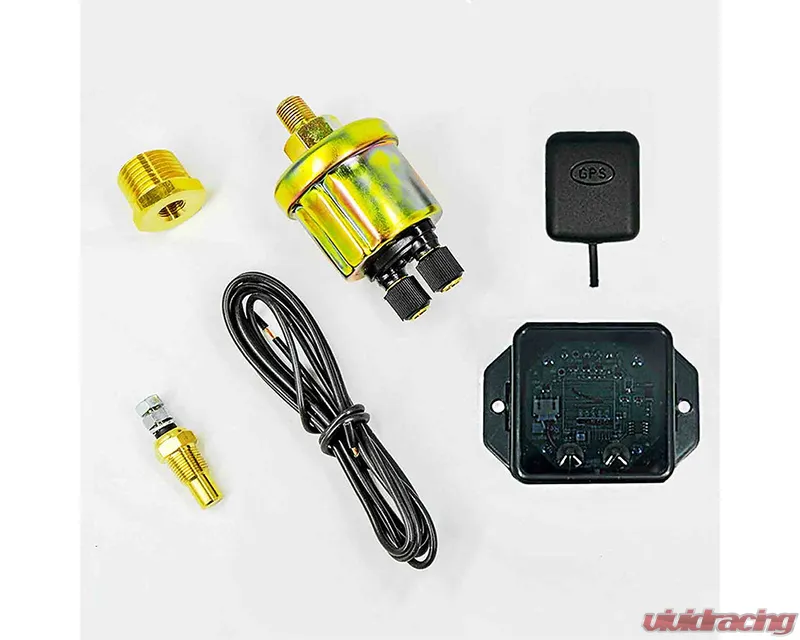

• ACCESSORIES: All required sending and sensor units are included.

Install Instructions :

• For Instructions CLICK HERE

Fitments :

• Chevrolet Truck 1967-1972

Notes :

• The gauge is set at industry standard 0-90. Please include a note in your order, if your sender works off a different Ohms range.
• If you need a 3/8" bushing, because we send the more common 1/2" bushing. Otherwise, you will have to purchase the bushing on your own.
• Bezel not included
• ORDER LED Digital and Bargraph SPEEDOMETER & TEMPERATURE in your choice of MPH and FAHRENHEIT or KPH and CELSIUS
• Make a note at the time of checkout if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
